(3P-LS-B1L-50LP-716P-LT) 50s Les Paul Pre-Wired Harness | LOW-SPEC Bourns Audio PDB241 Long Shaft, Tall Toggle

Buhr Electronics

Regular price $57.95

Ask a Question

This kit is ideal for Gibson Les Paul Standards, Traditionals, Classics, Customs, and other similar guitars.  Not sure what you guitar needs? Shoot me a message.

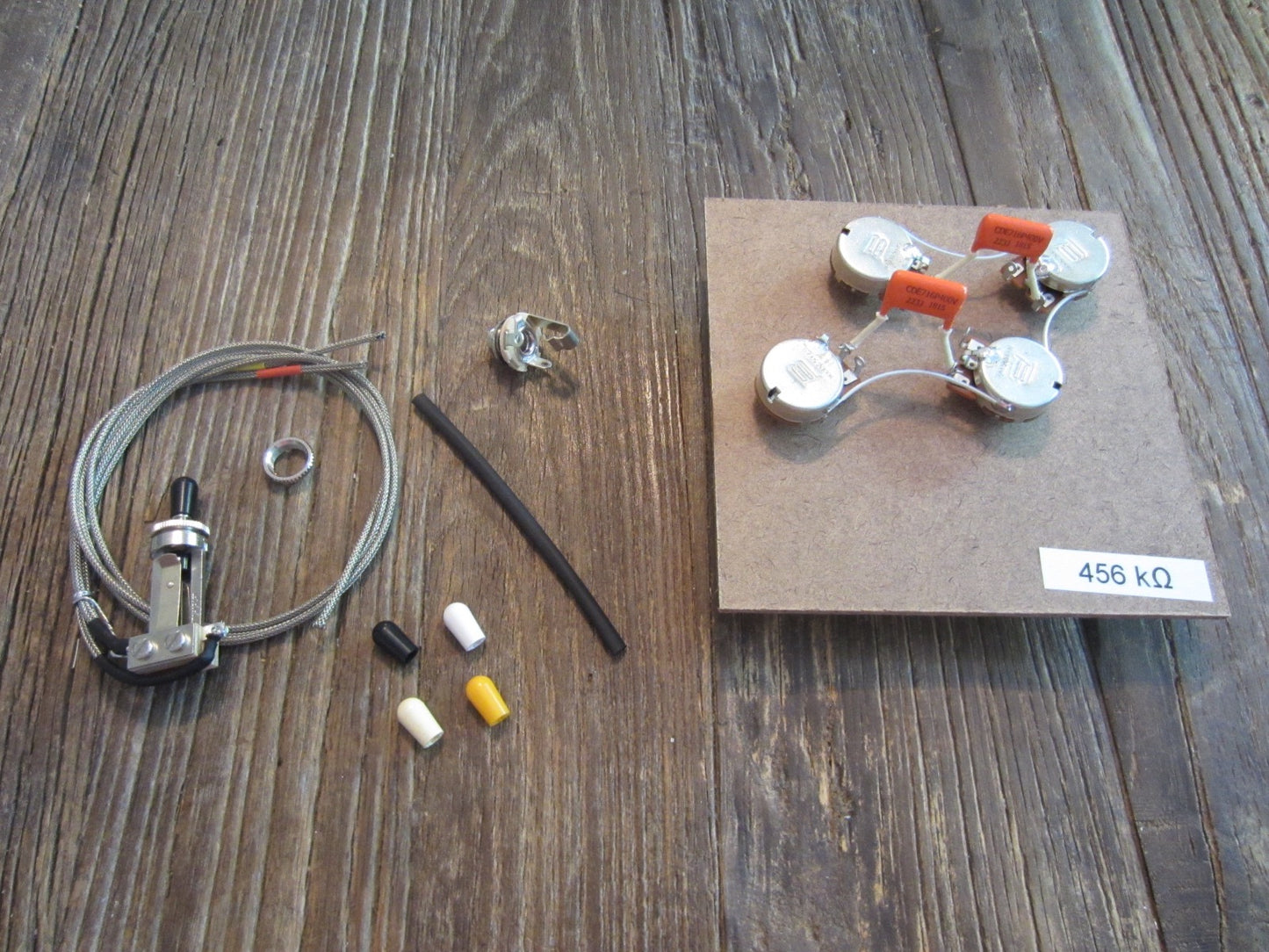

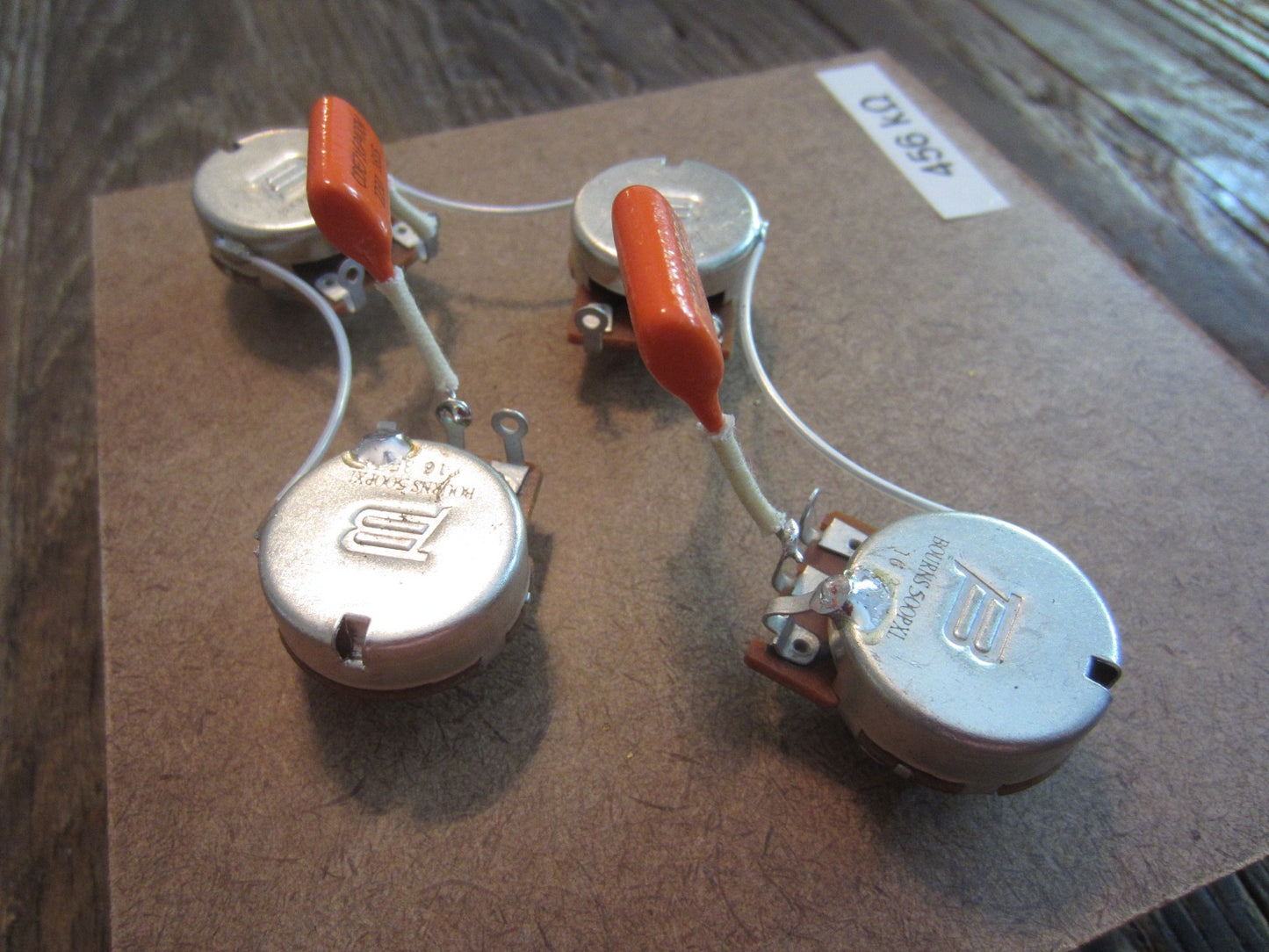

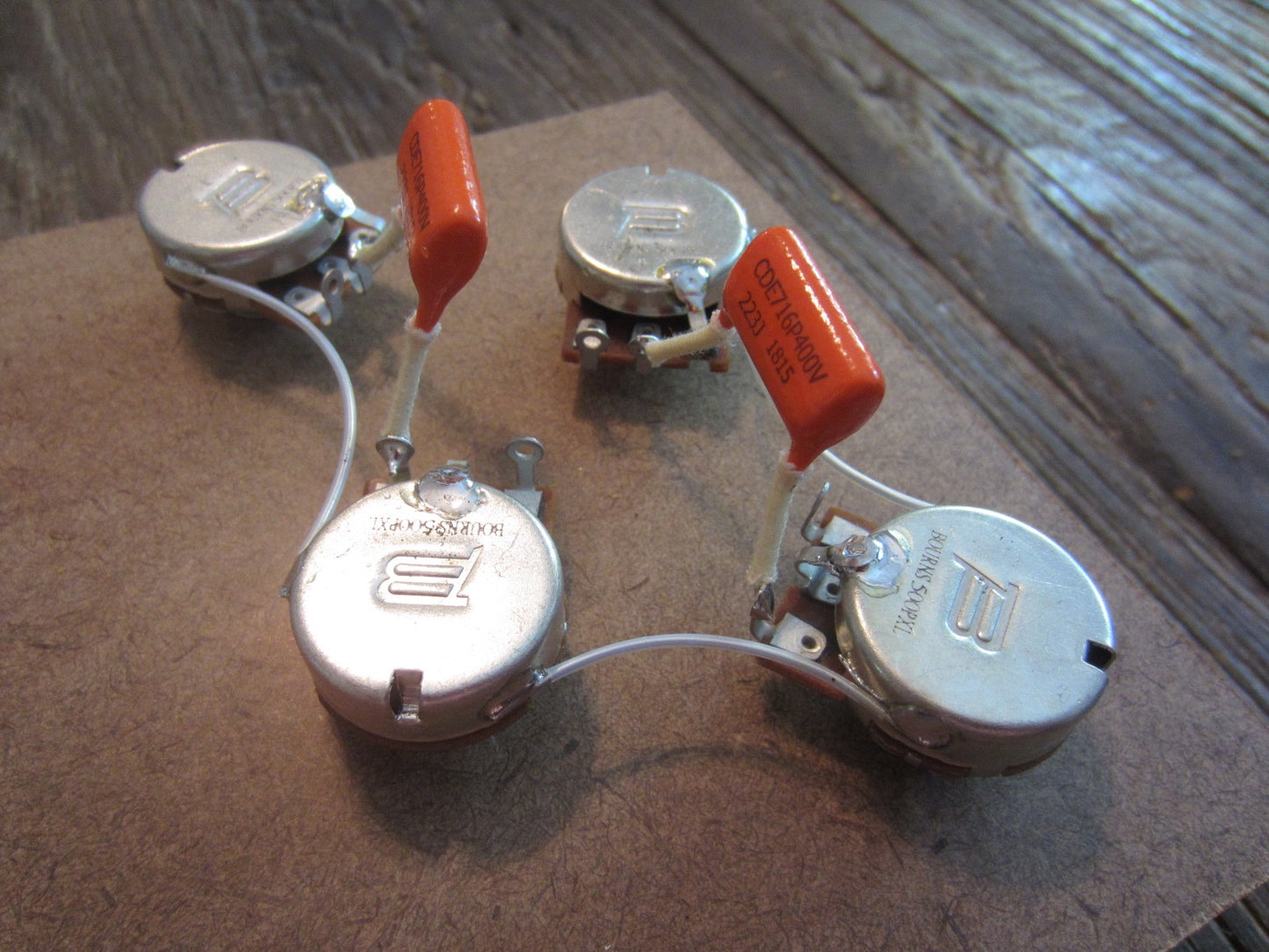

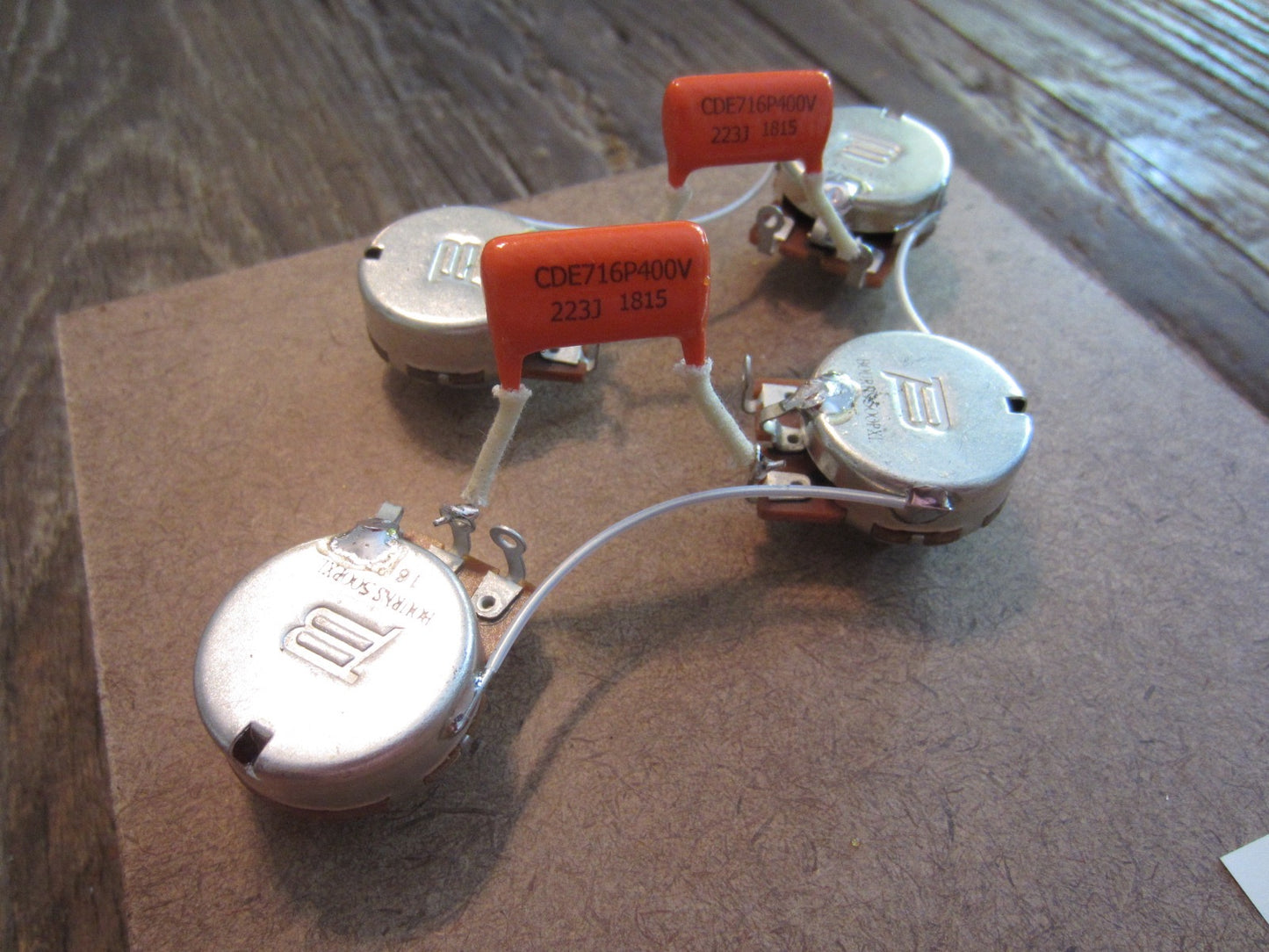

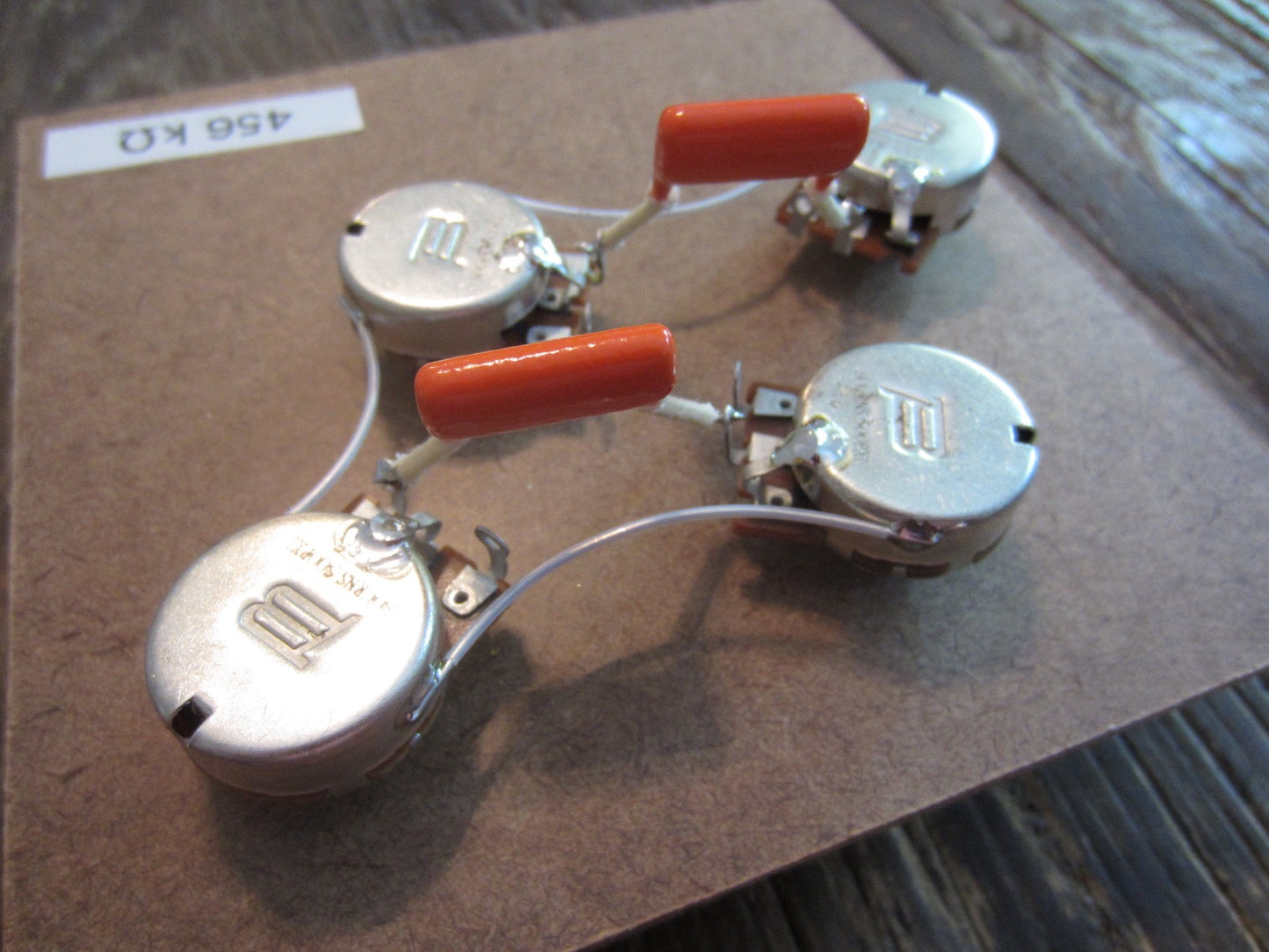

This is fantastic kit to upgrade your Les Paul and is comprised of top quality components including:

  • Bourns Audio PDB241 Low-Friction 3/4" Long Split Shaft Potentiometers
  • Orange Drop 716P Polypropylene 400v Capacitors
    • Ships Standard w/ .022μF in both positions - .033μF & .047μF are also available.
  • Switchcraft Standard Frame (Tall) Toggle w/ Deep Collar Nut
    • Ships Standard w/ Black Tip - White, Cream, and Amber are also available.
  • Switchcraft #11 Jack.

These "LOW-SPEC" kits uses +/-2% Matched Potentiometers ranging from 440k to 490K Ohms and the two higher value of pots will be used for the volume controls.

Example Set #1:

  • Neck Vol - 452K,
  • Bridge Vol - 452K
  • Neck Tone - 451K
  • Bridge Tone - 451K

Example Set #2:

  • Neck Vol - 468K,
  • Bridge Vol - 468K
  • Neck Tone - 467K
  • Bridge Tone - 466K



NOTE:  Long Shaft pots are typically reserved for GIbson Les Paul model guitars manufactured after 1977.  These Bourns Audio Potentiometers have a Traditional 10% Audio Taper and 18-Spline Coarse Knurl Split Shaft Posts requiring a 3/8" Mounting Hole.
