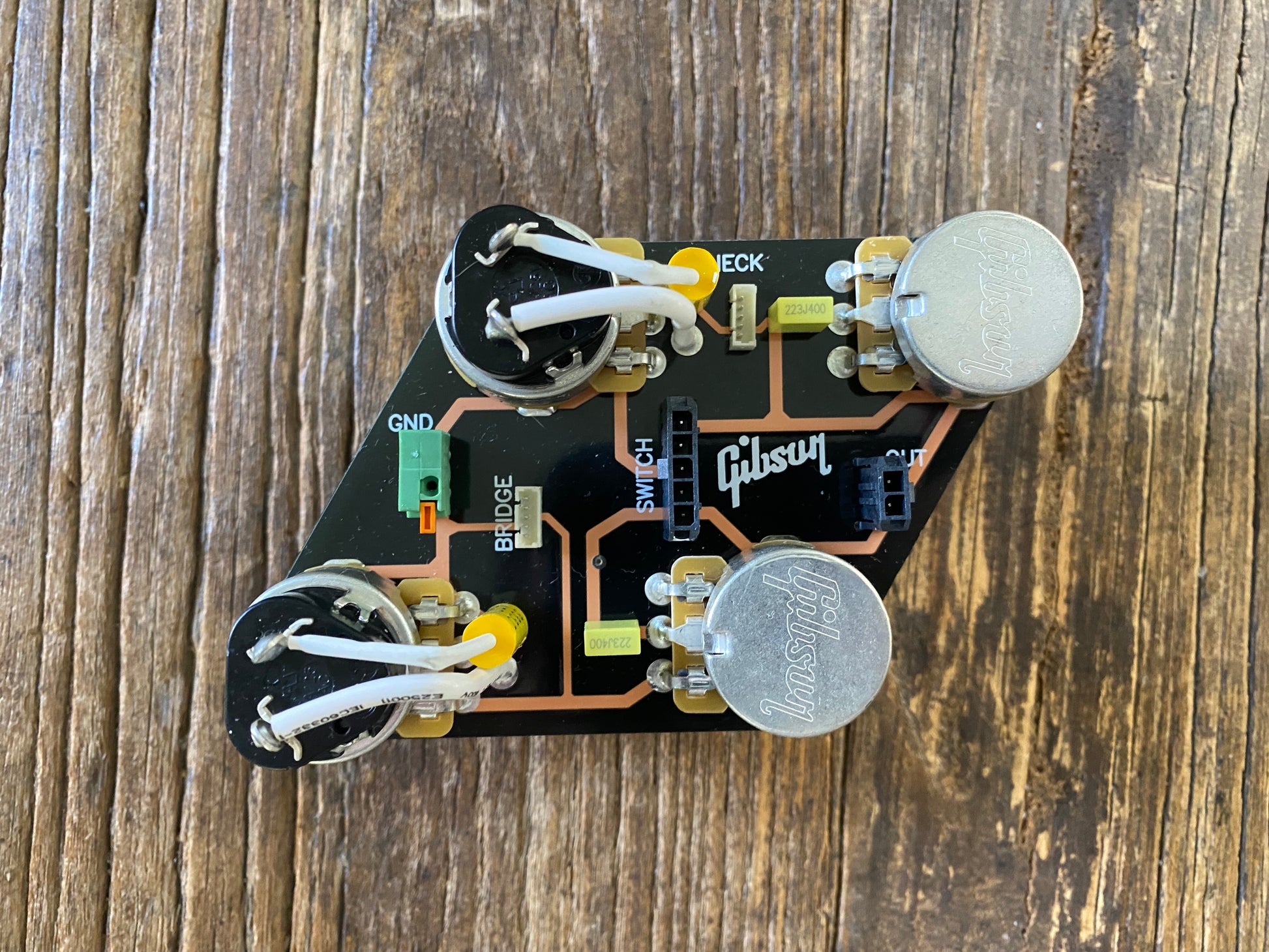

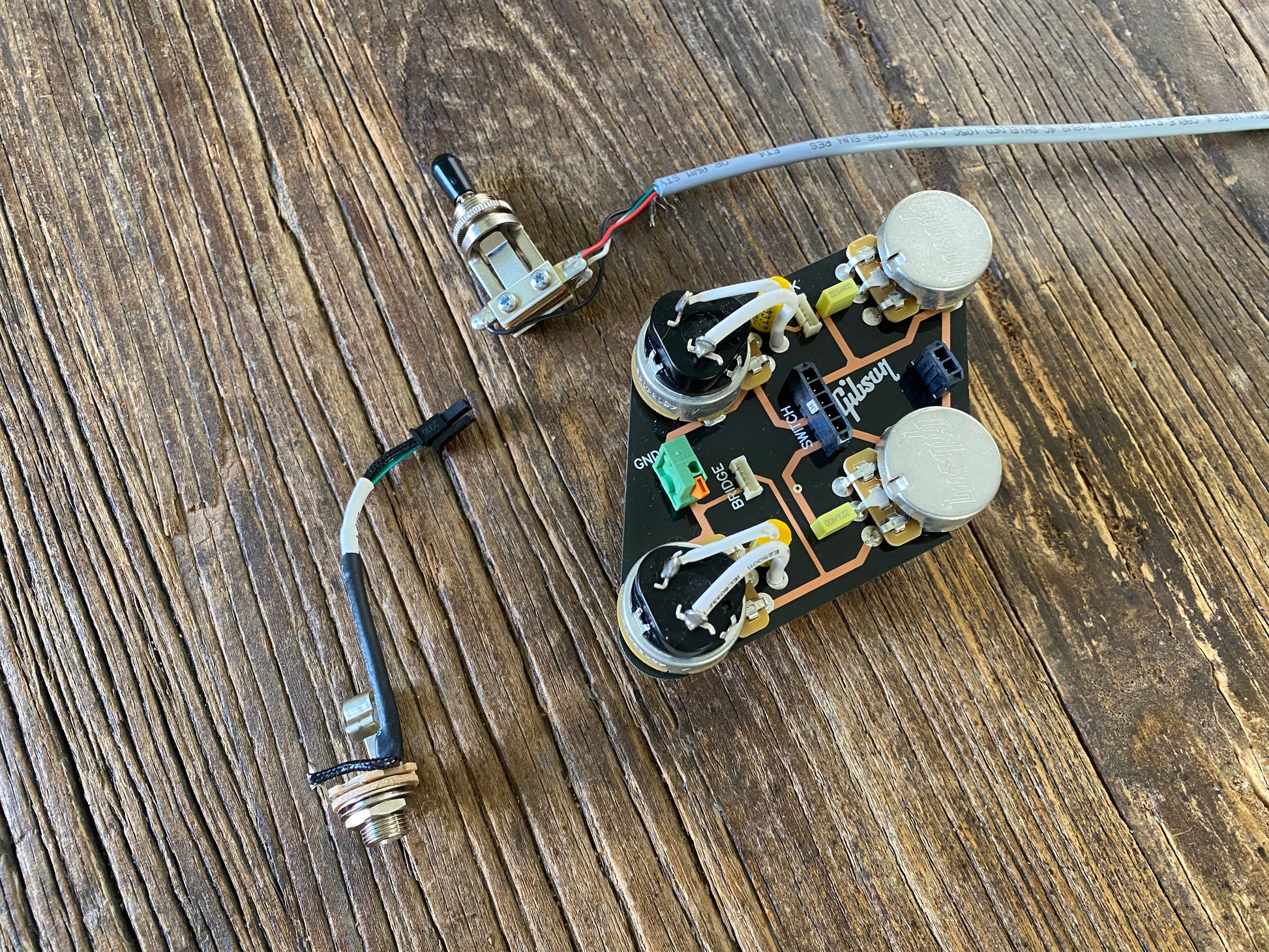

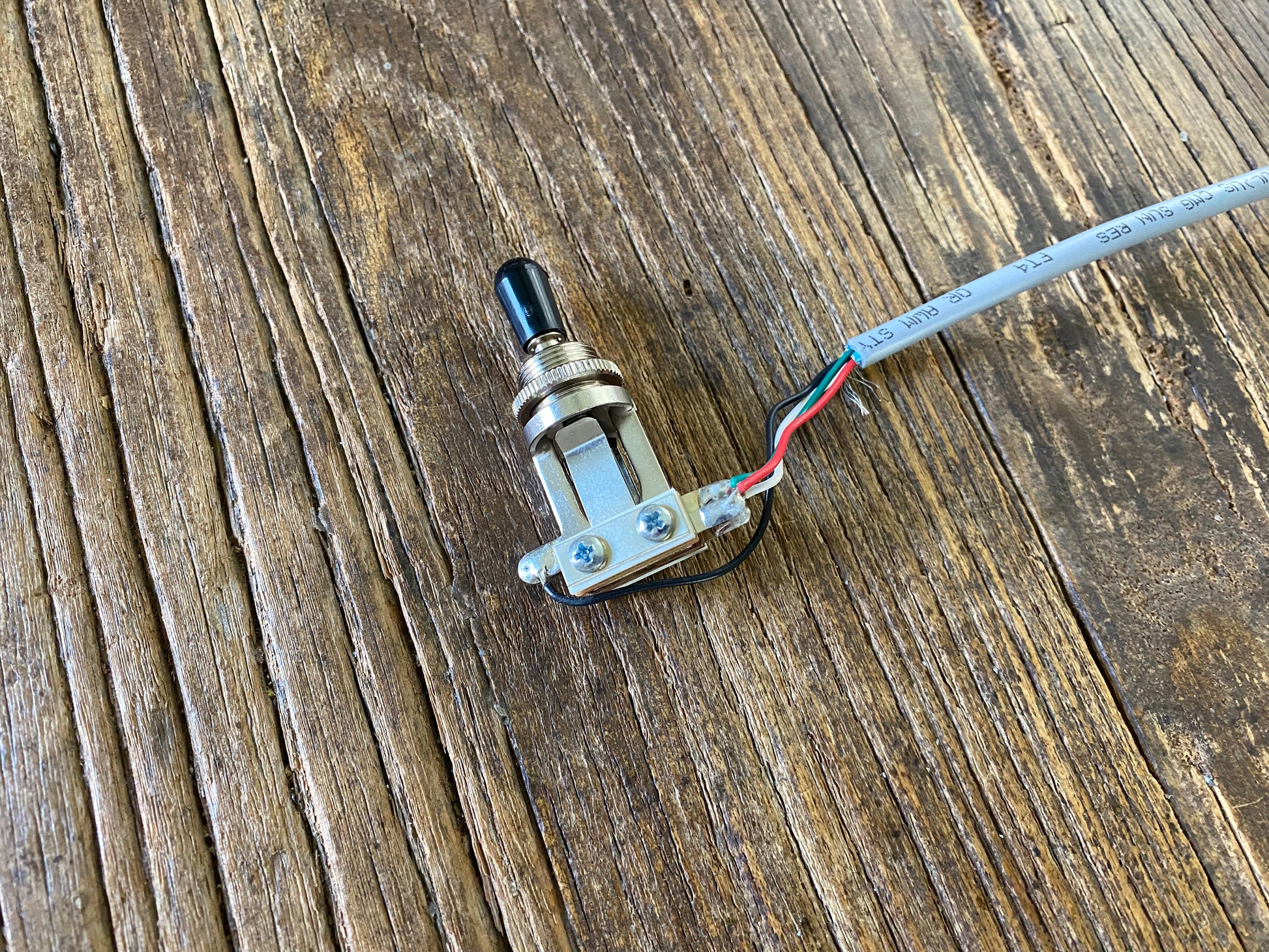

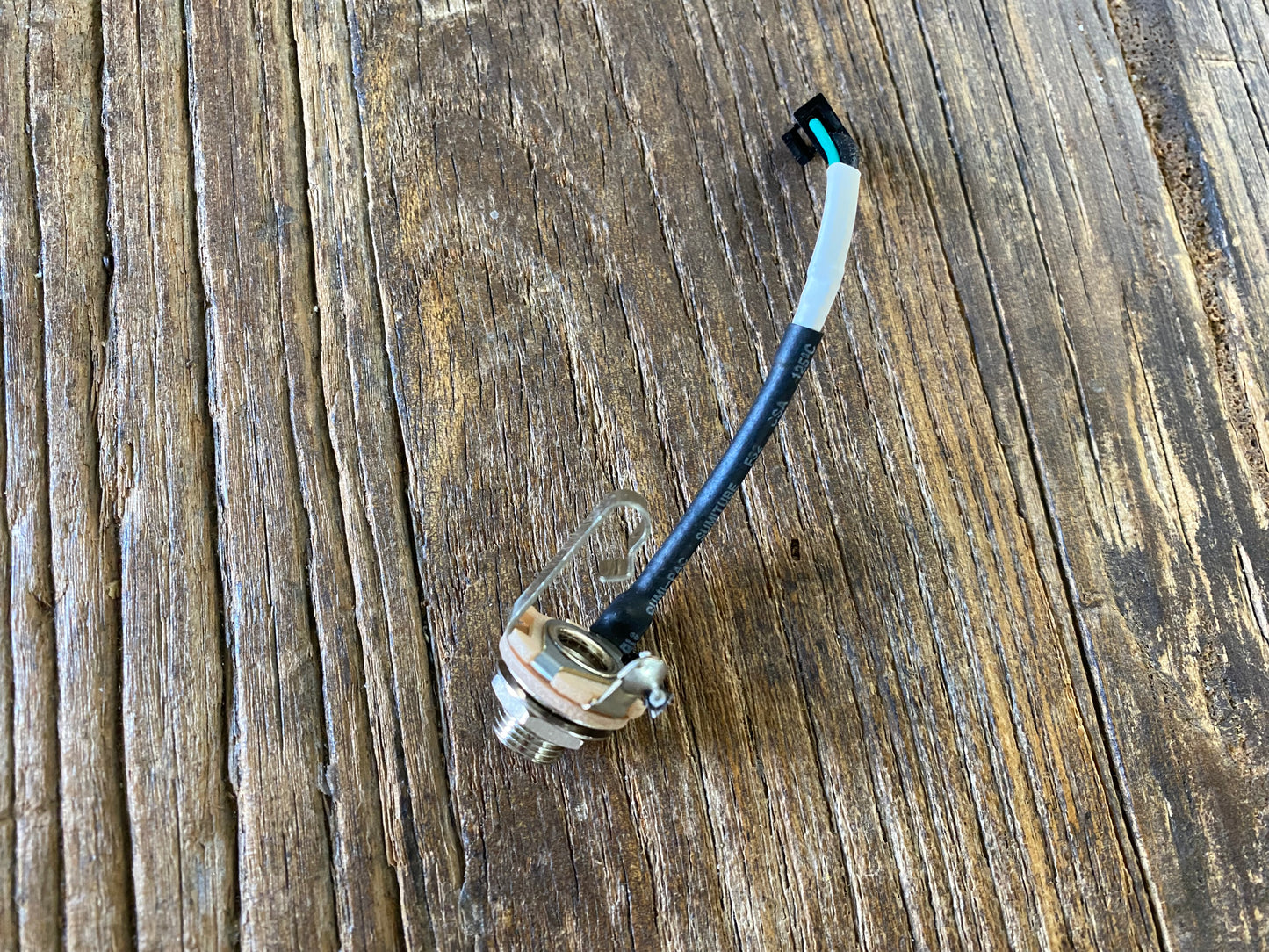

Here's a super clean Gibson USA Full PCB w/ Toggle and Jack from a 2022 Les Paul Studio. This wiring harness is compatible with Gibson 4-Conductor quick connect pickups.
Basic Les Paul functions with a volume and tone for each pickup with added "Tuned" coil splitting.
Bridge Volume - 528 kΩ
Neck Volume - 467 kΩ
Bridge Tone - 472 kΩ
Neck Tone - 436 kΩ
Tone Capacitors are .022 µF and wired "Modern" style.
