Paul Reed Smith PRS SE Upgraded Wiring Harness | Vol / Tone / 3-Way Blade - Bourns, CRL, Switchcraft
Lil' Huddy's Guitar Shop

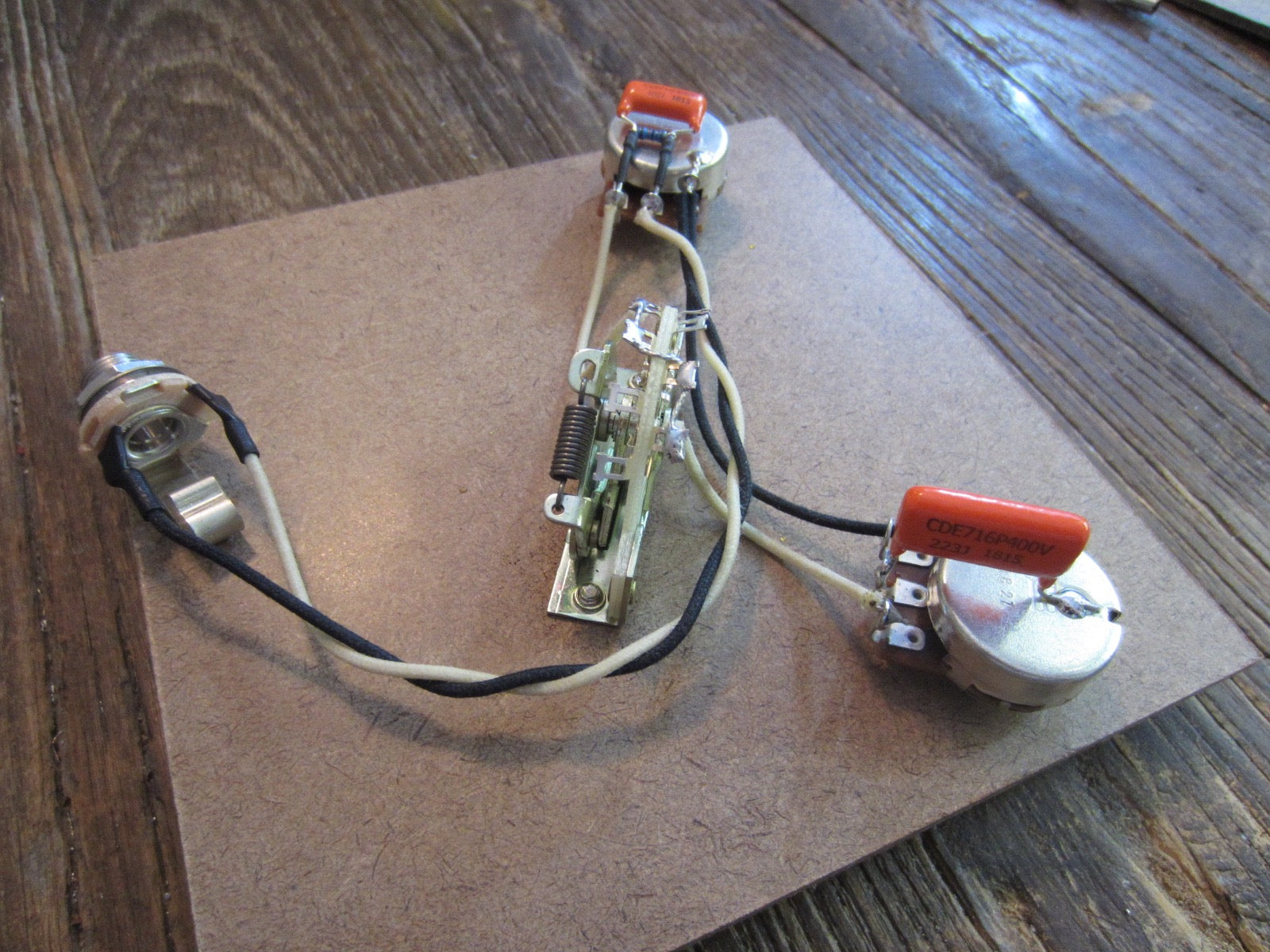

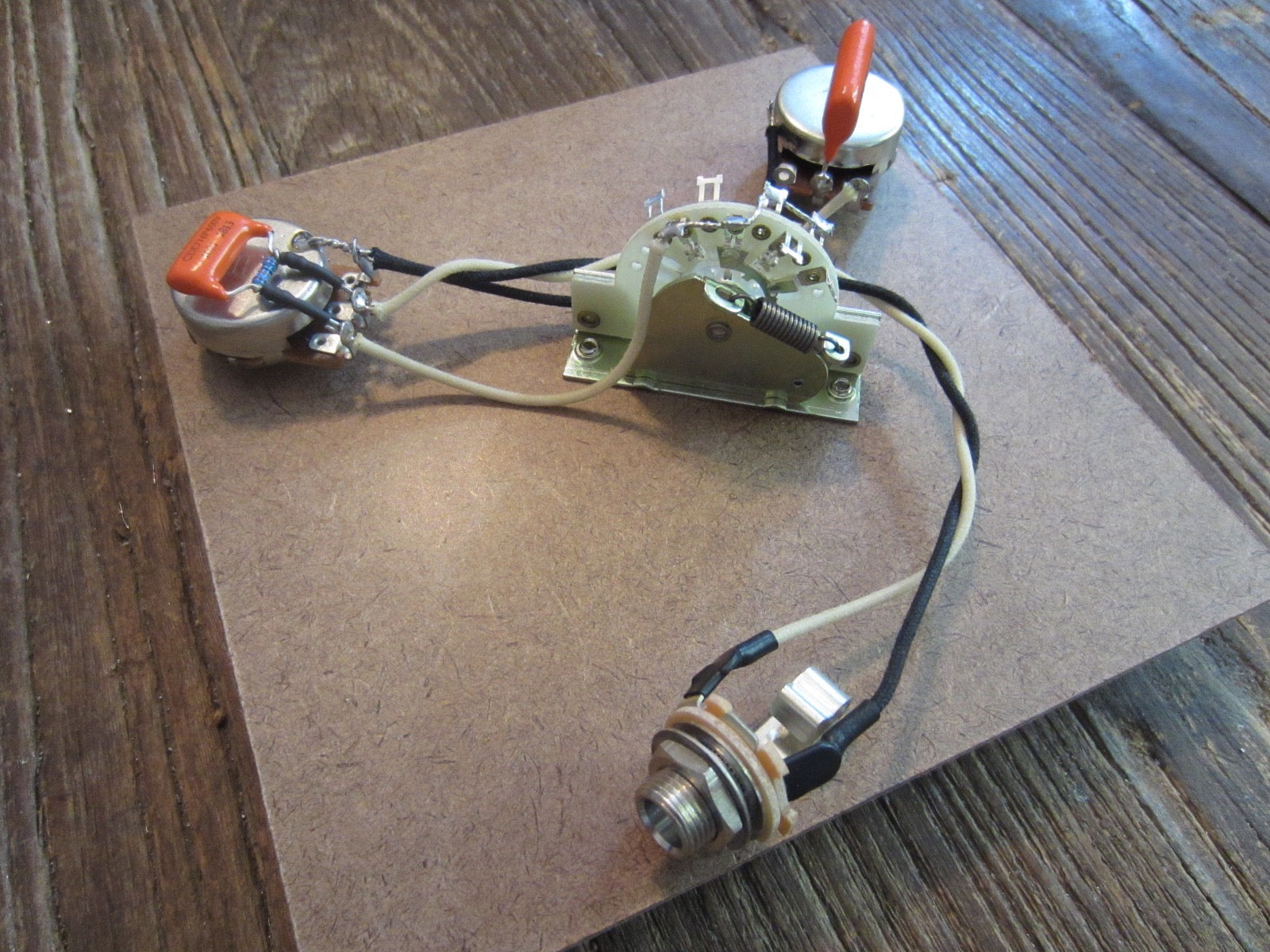

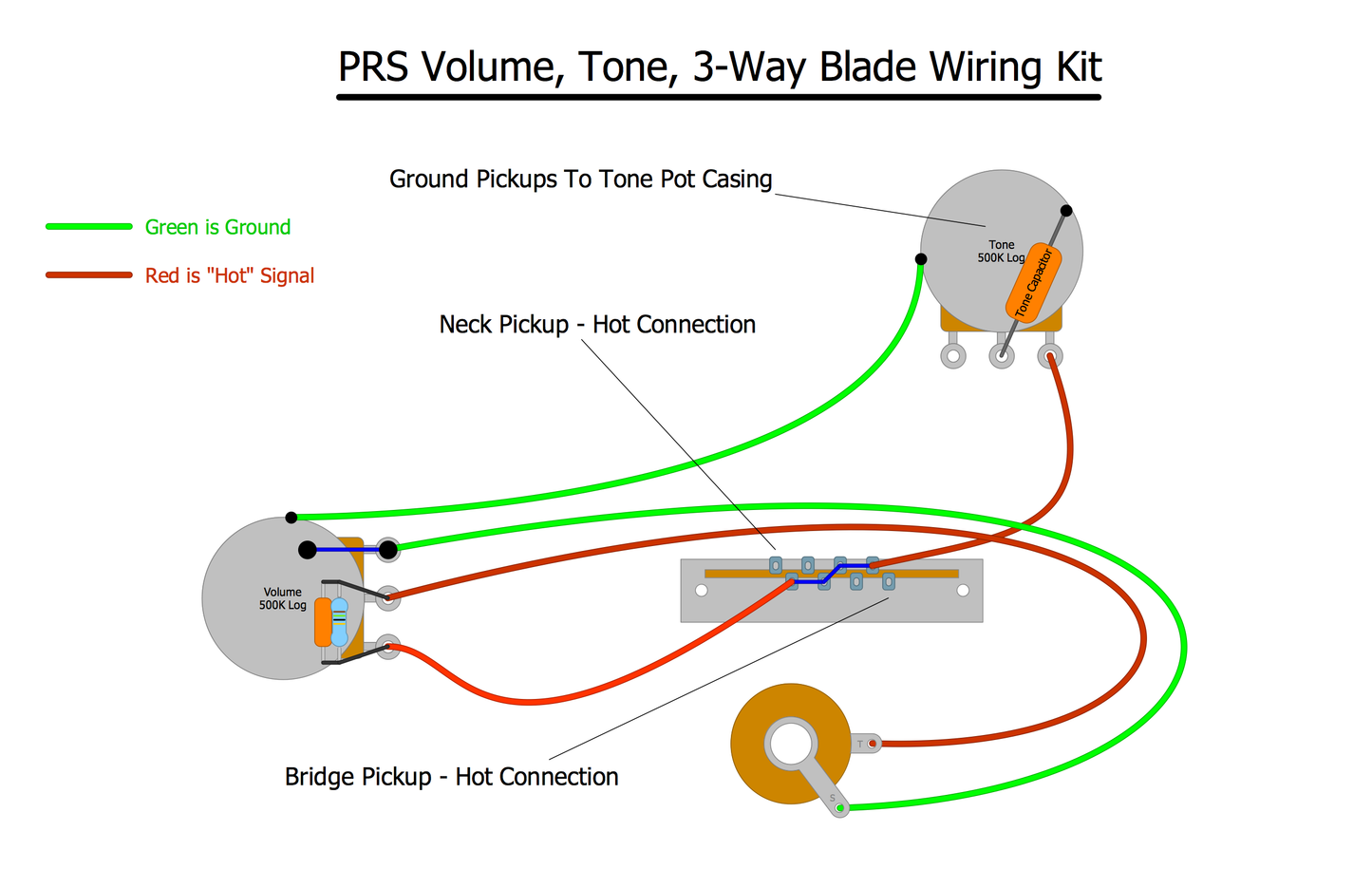

Here is a great way to upgrade your Import PRS or PRS style guitar with high quality components in one easy drop-in harness. This template was created from a 2009 PRS SE Custom 24 which featured 1 x Master Volume, 1 x Master Tone, & 1 x 3-Way Blade
This kit includes:
2 x Bourns 500k Audio Taper Short Split Shaft Potentiometers

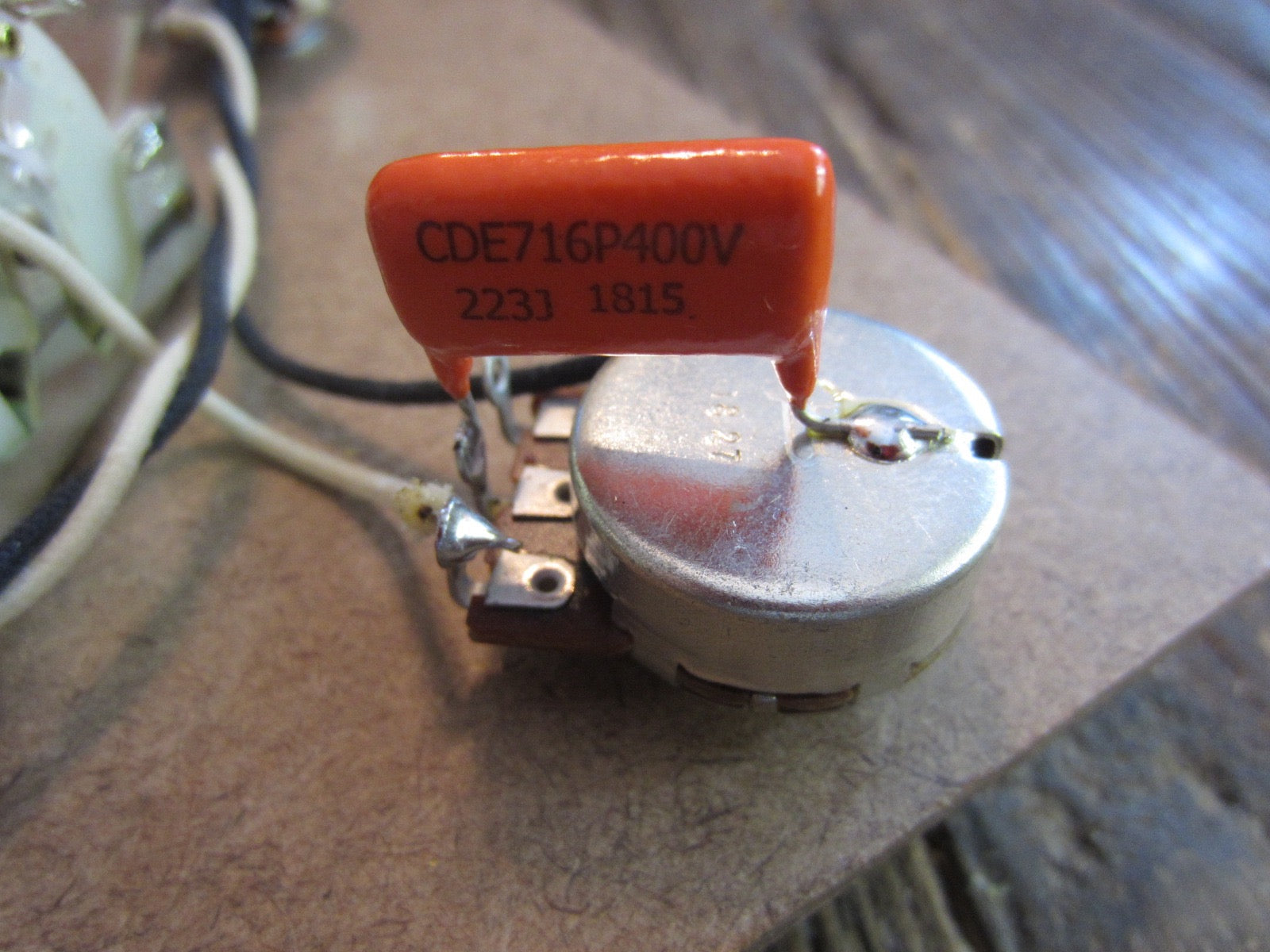

1 x Orange Drop 716P 400V .022uF, .033uF, or .047uF Capacitor (Please Specify)

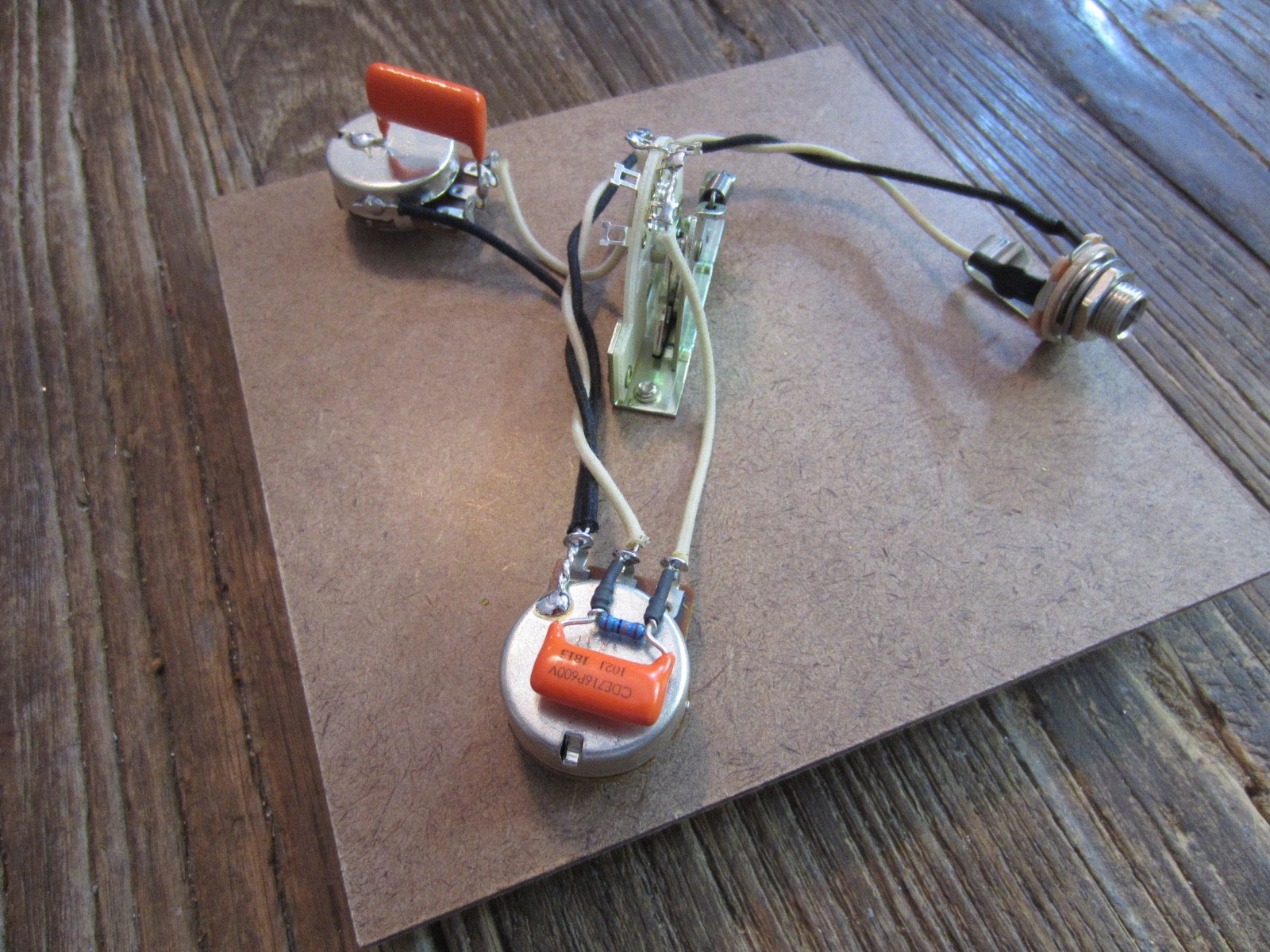

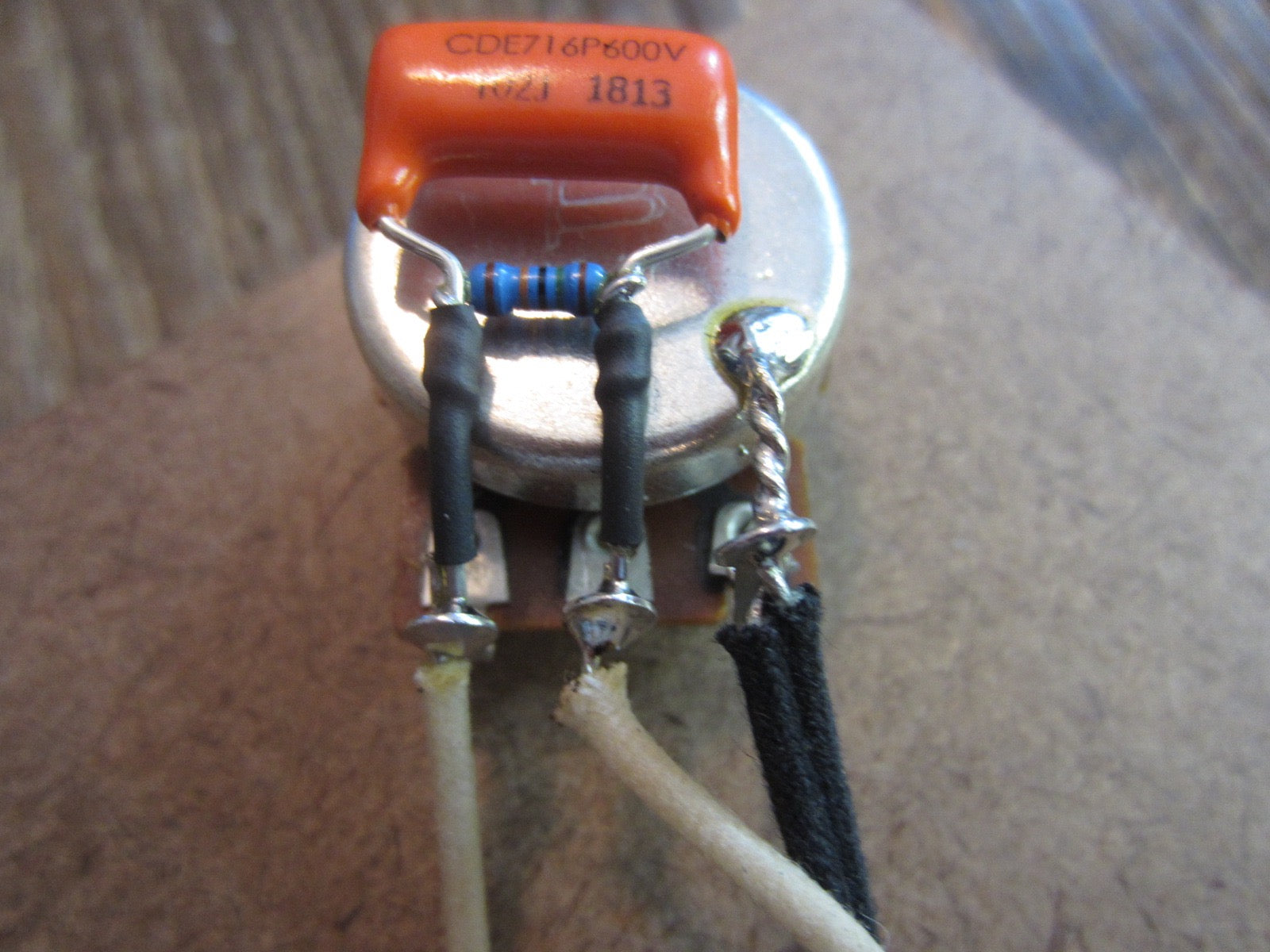

1 x Orange Drop 716P 600V .001uF & 150k Ohm Resistor Treble Bleed Circuit
1 x Wired CRL 3-Blade Switch (Tip Not Included)

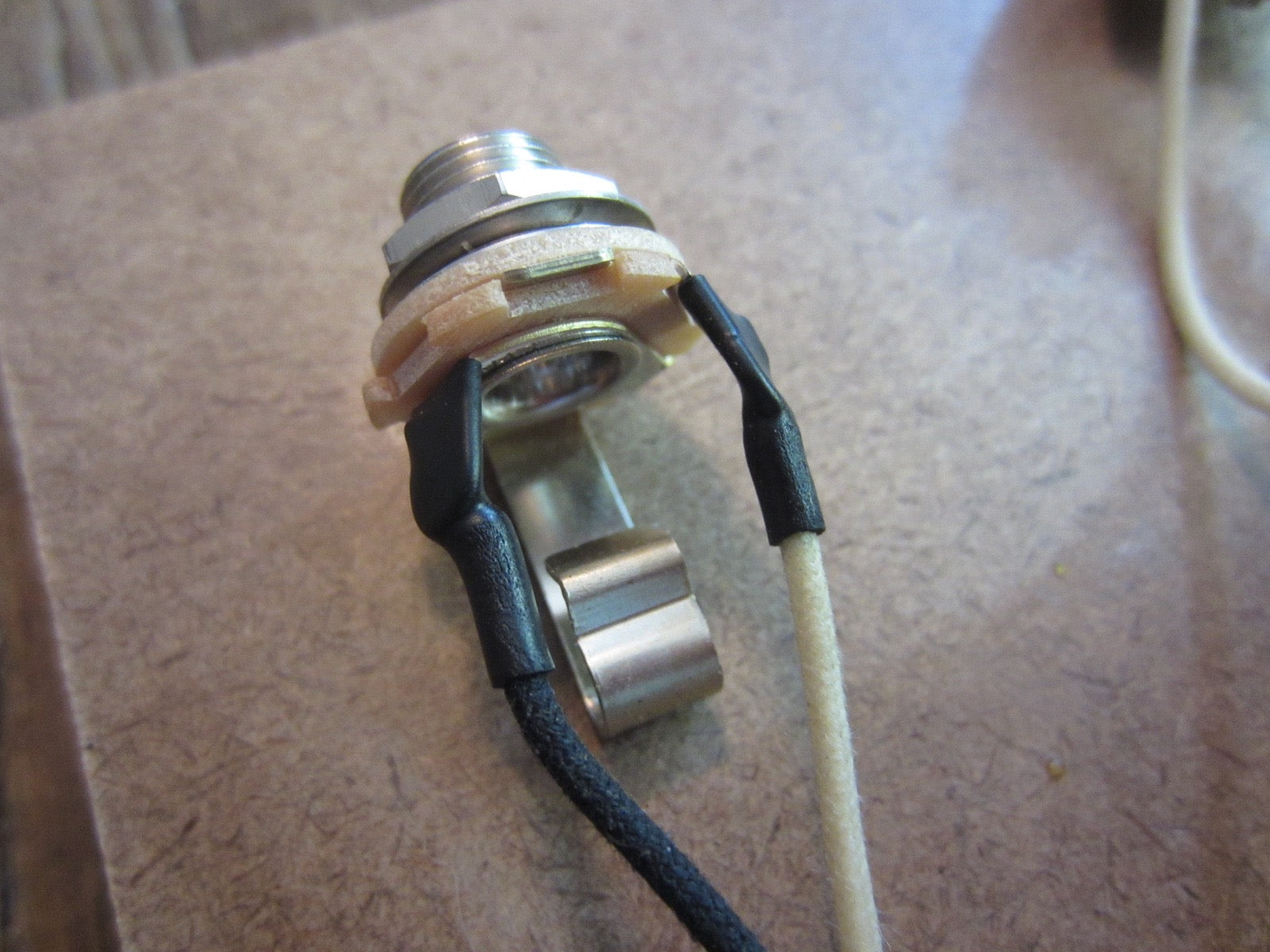

1 x Switchcraft #11 Mono Output Jack

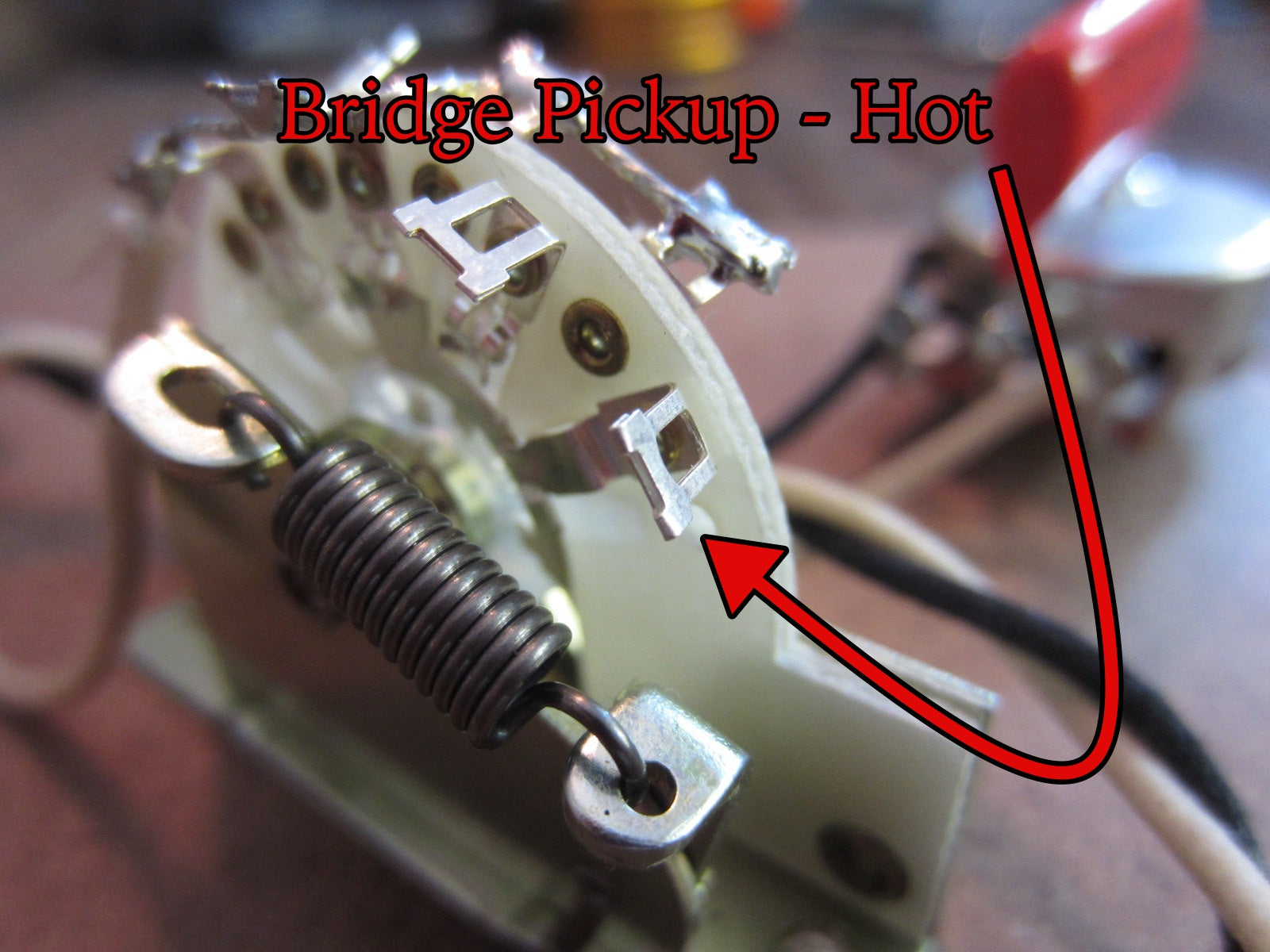

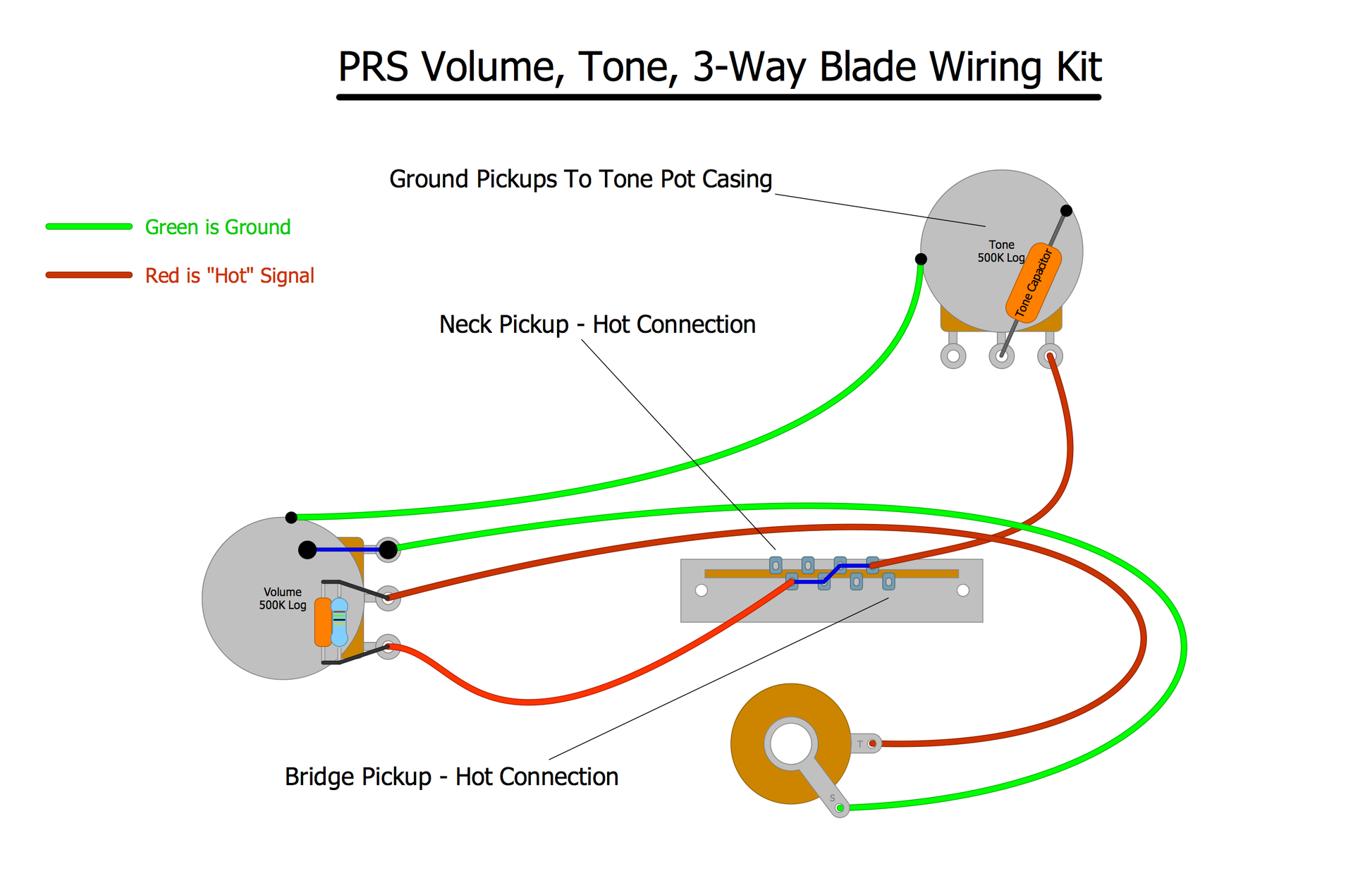

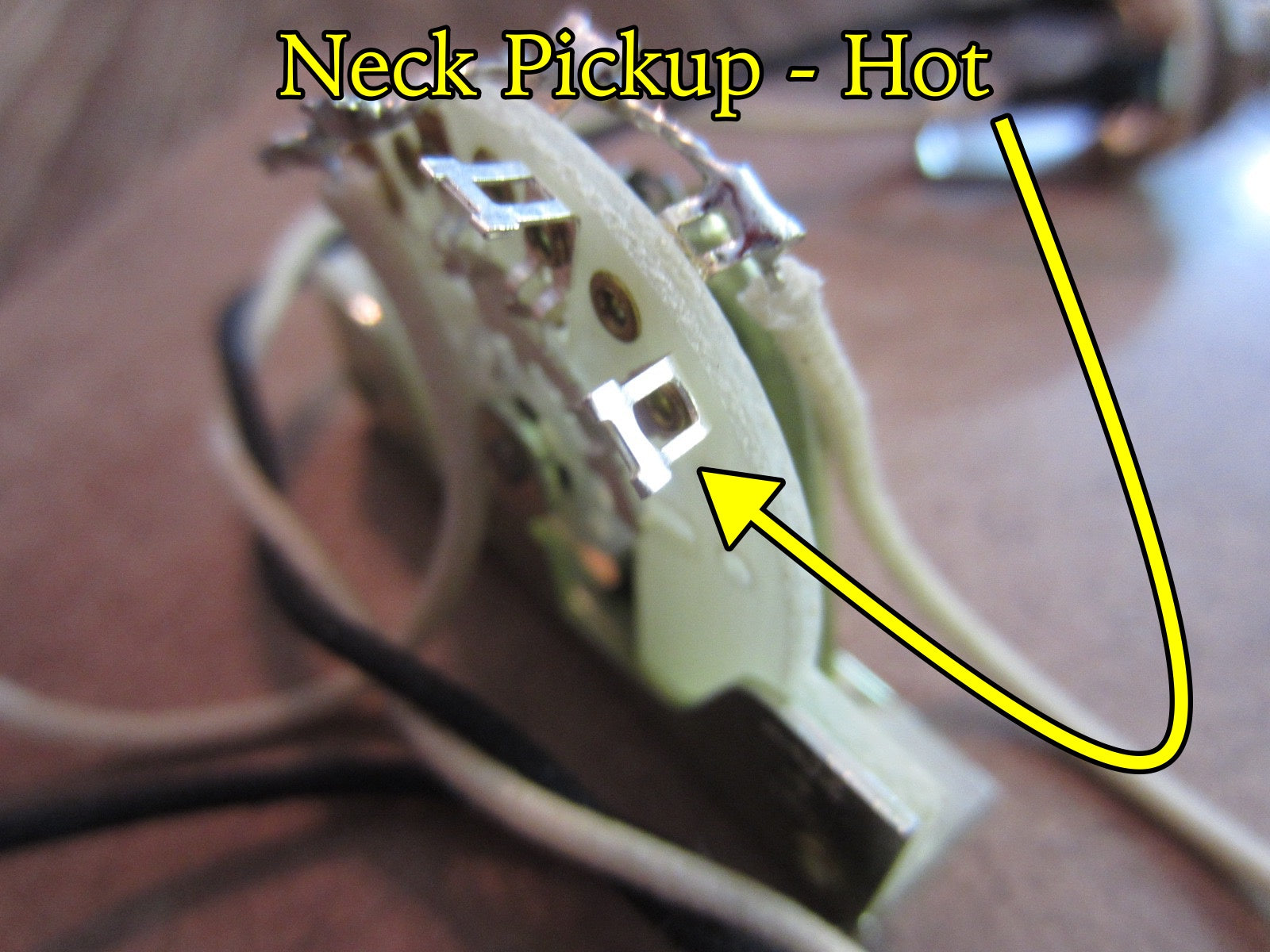

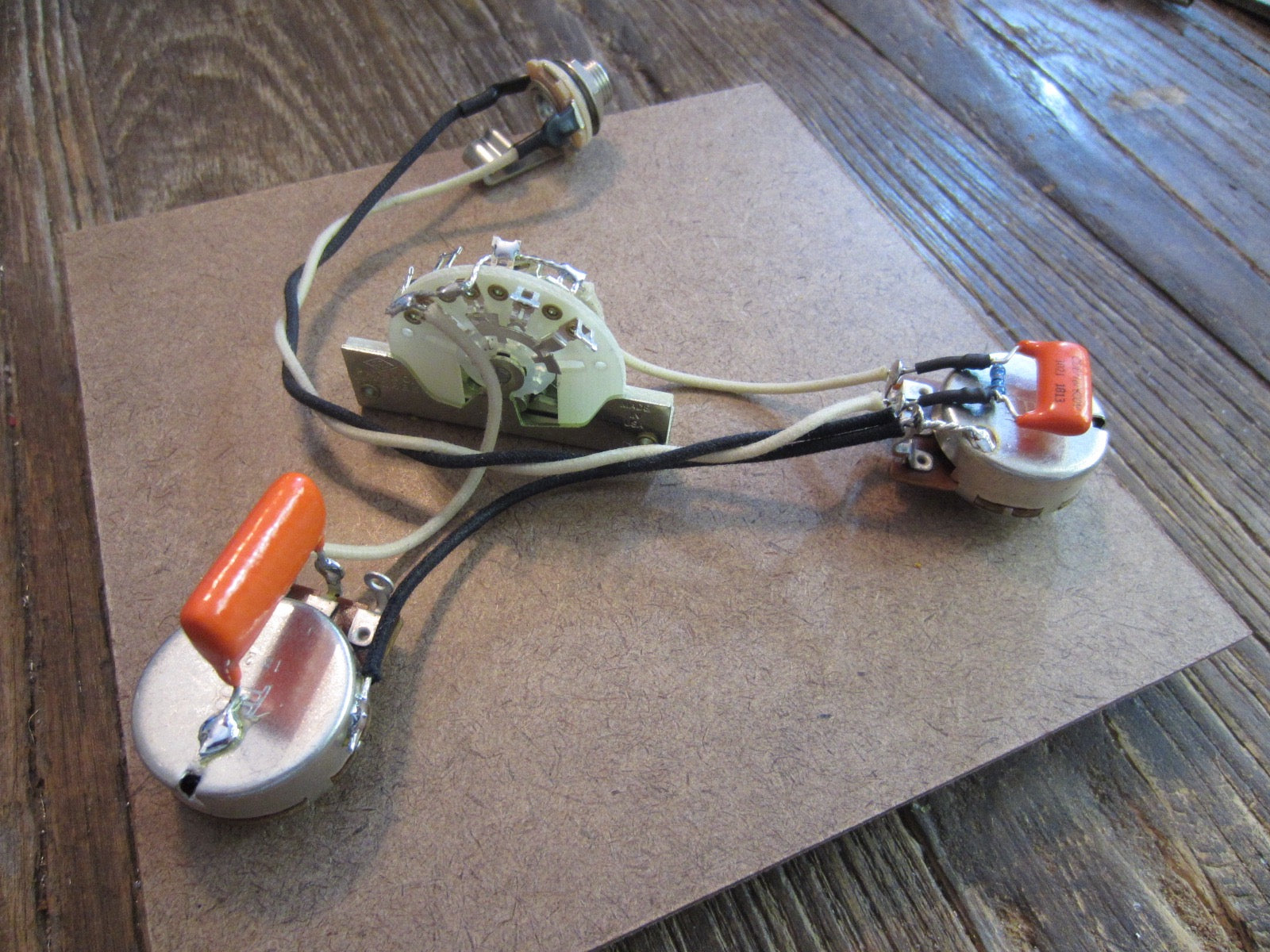

Simply drop this harness in to your guitar and connect the pickup leads to the selector switch leads and appropriate grounds.
All Potentiometers are matched to have a 2% +/- Tolerance.
Note: Bourns Potentiometers Require 18-Spline Course Knurl Knobs which should match the Alpha Pots that come standard in import PRS guitars. Additionally, many import brands may require the mounting holes to be enlarged to accept the 3/8" potentiometer bushings.
