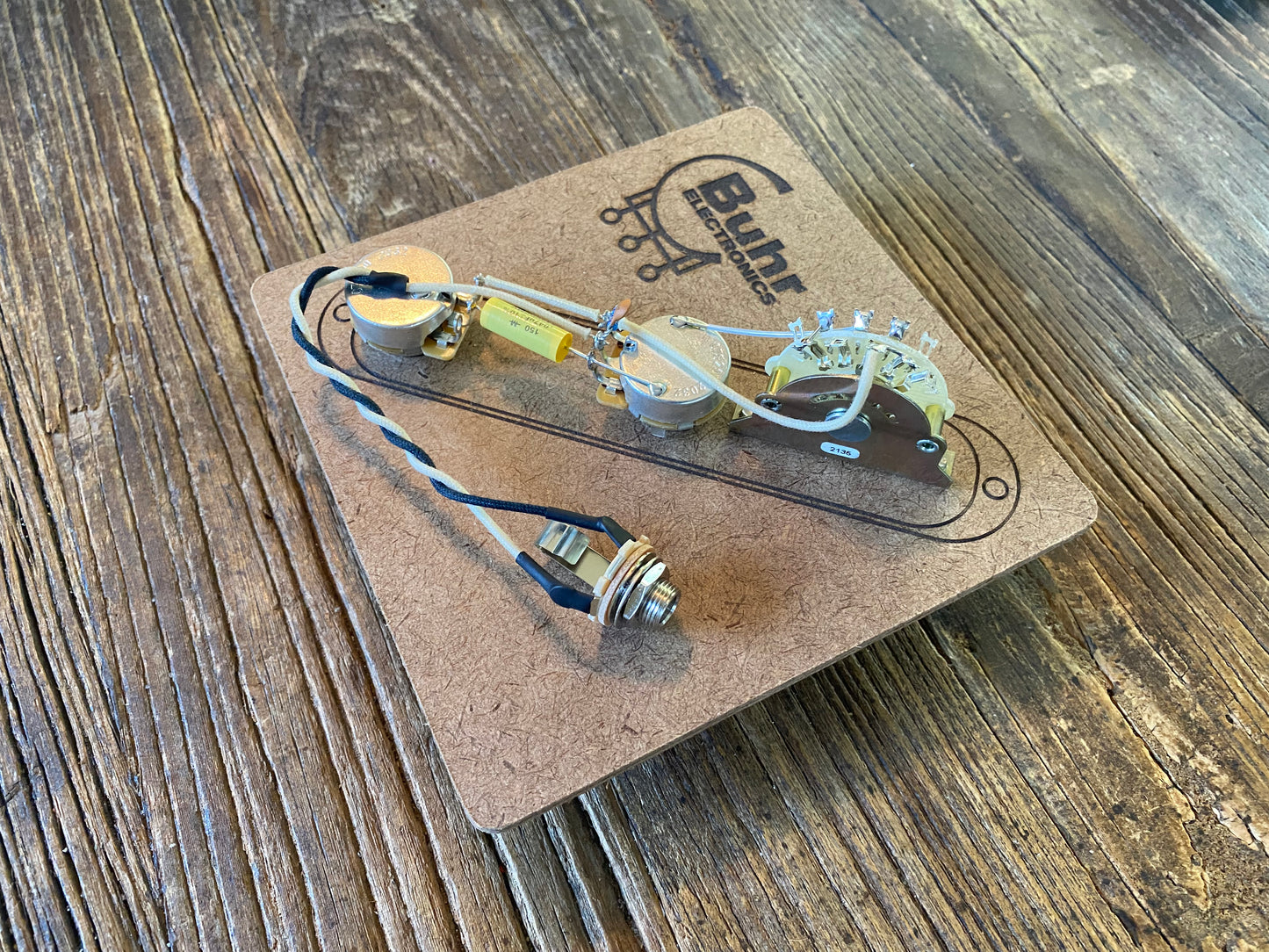

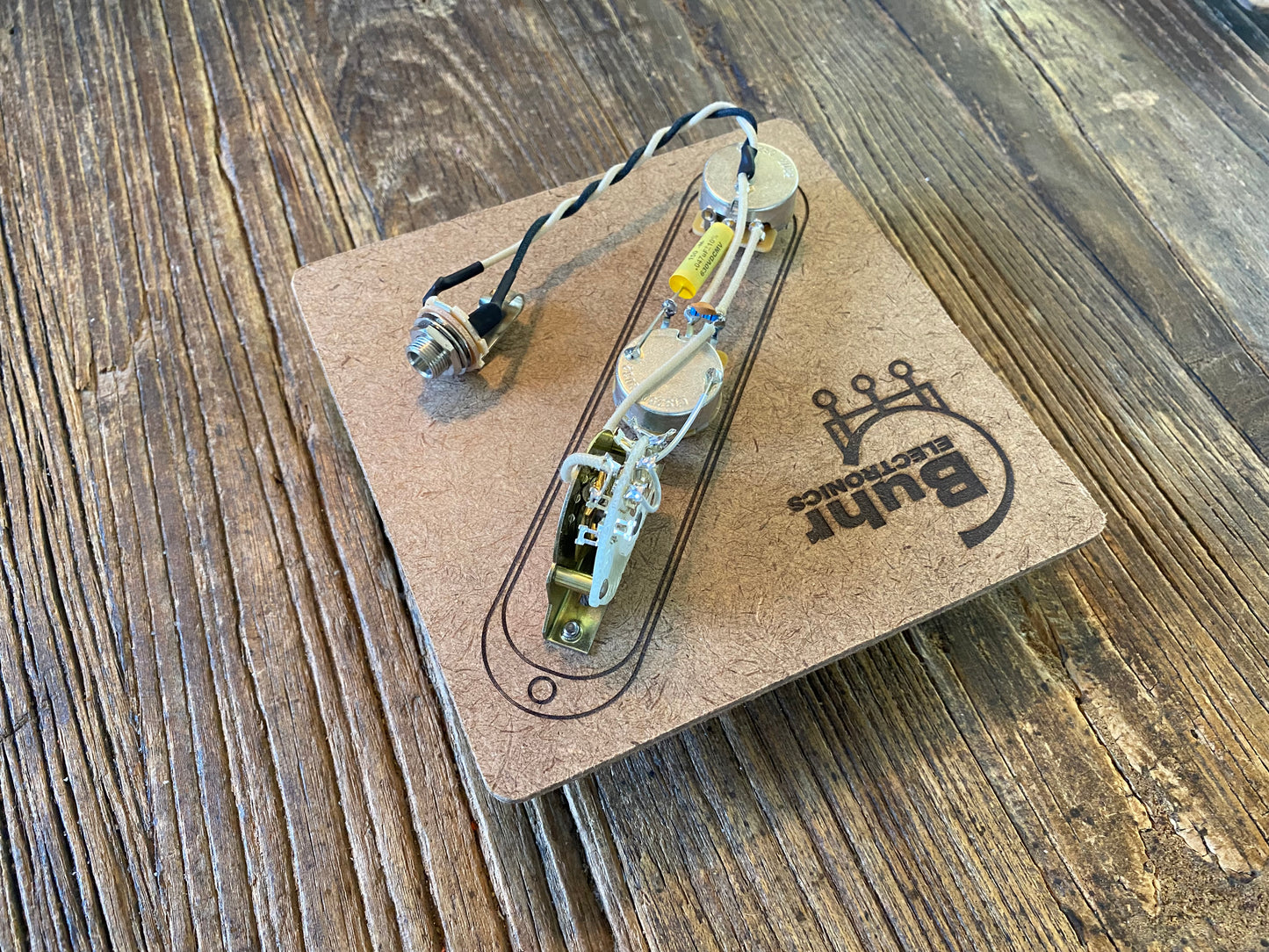

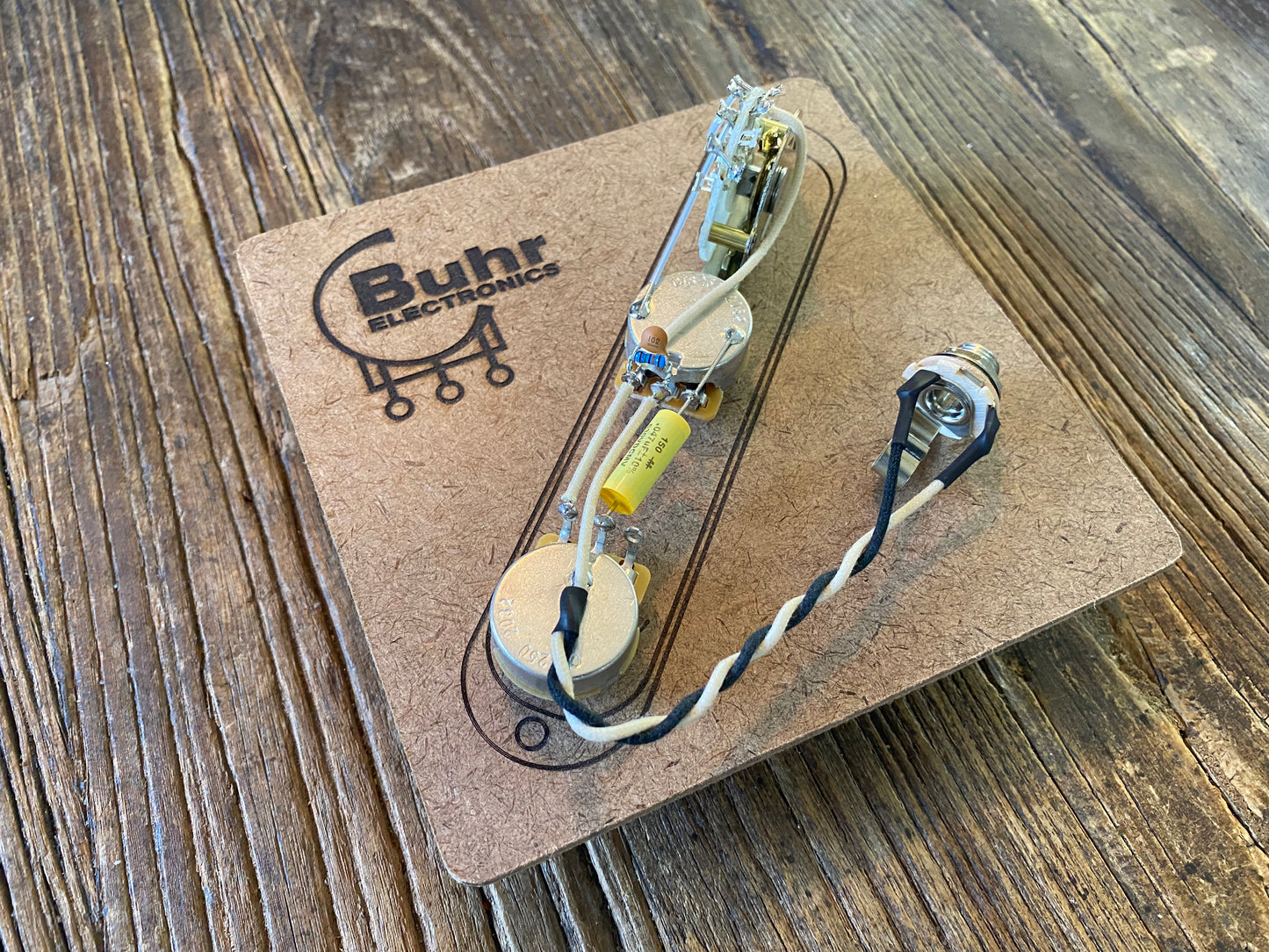

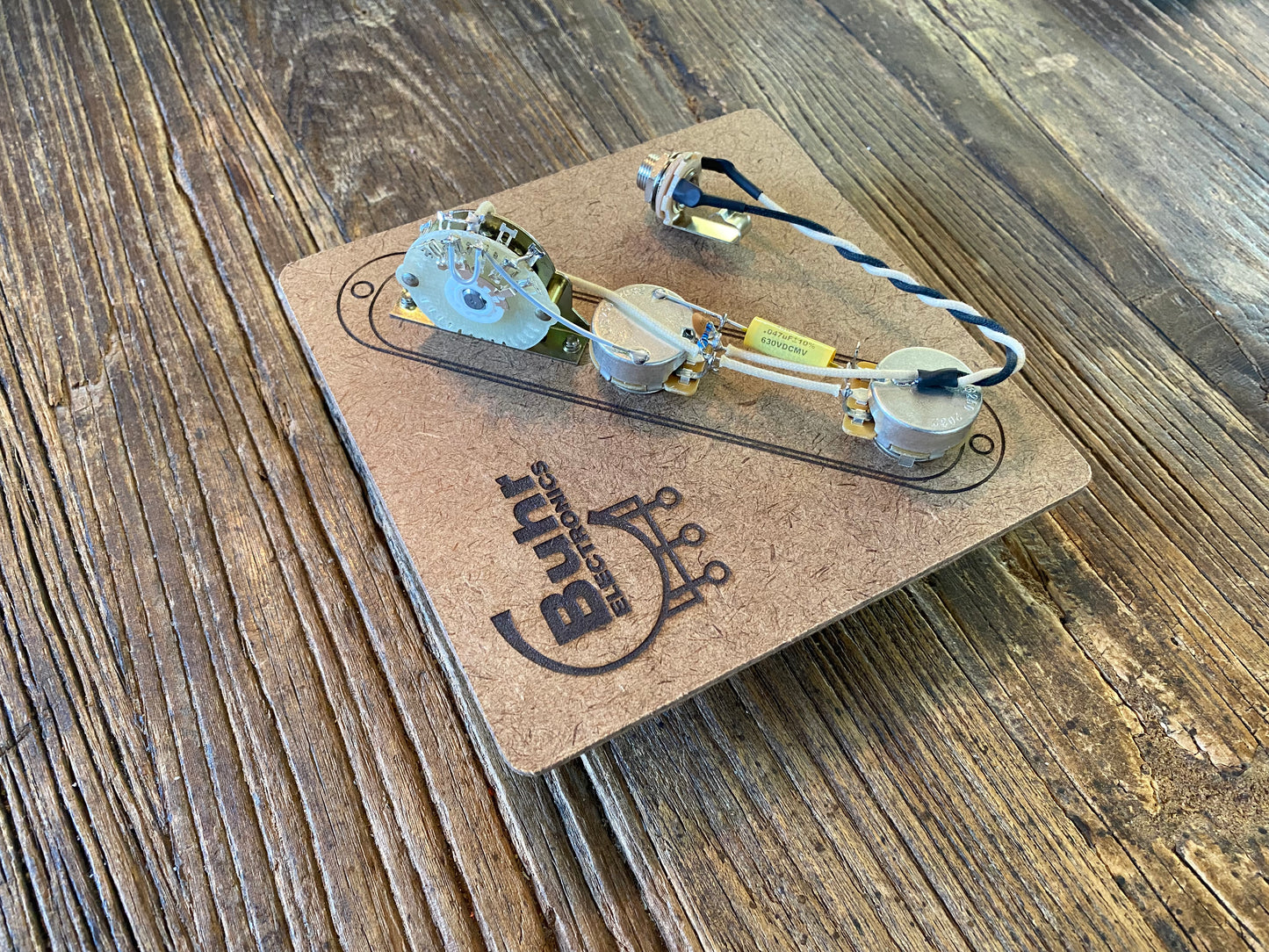

Traditional Telecaster 4-Way Wiring Diagram
These kits are built in the standard layout as default. However, if you'd like reverse layout - Volume towards the headstock, Switch towards the bridge with the tone in the middle - that's absolutely fine. Either leave a note in the "Order Special Instructions" dropdown box prior to checkout, or reply to your order confirmation shortly after receiving it.
Each of my Telecaster wiring kits are built with 2.5" spaced (center-to-center) mounting holes for the volume and tone control. If your control plate has different spacing please let me know what that measurement is and I'll be happy to accommodate. Again, either leave a note in the "Order Special Instructions" dropdown box prior to checkout, or reply to your order confirmation shortly after receiving it.
All potentiometers that I use have a US Spec 3/8" threaded bushing. If your control plate does not have properly sized mounting holes to accept these potentiometers you can either enlarge them by drilling them out - or - purchase a Kluson Vintage Style Telecaster Control Plate in one of 4 available finishes.
All of my Telecaster Wiring Kits are built with US Spec 1/4" Solid Shaft Potentiometers. Many import guitars use Import Spec parts with either a press-fit knob and a split shaft or a 6mm solid shaft. If this is the case with your guitar, your original knobs will not fit this wiring harness. You are of course welcome to source your own knobs - just make sure they are 1/4" Solid Shaft secured with a set screw. I also have the appropriate 1/4" Solid Shaft Compatible Knobs available for your convenience.
I do not ship outside of the US any longer. Unfortunately, a bad run of lost packages and extremely delayed deliveries soured my experience with international shipping.
I do not stock reverse audio taper (left handed) potentiometers. Full clockwise will always be full volume or brightest tone. If that's okay with you, I'm happy to accommodate.
That's tough to say for certain. All of my wiring harnesses are made with "US Spec" components - imperial sizing and thread pitch. The spec's of each harnesses components are either listed or linked in the description. If you're still not sure please do not hesitate to ask.
That's another tough one to say for certain. Each of my wiring templates is CNC cut from a scan of the actual guitar. If it's a specific guitar - a Squier Toronado for example - I have an exact template for that layout and it will fit just fine (aside from mounting holes likely needing to be enlarged).
If it's for a custom build, kit, or off-brand guitar it's 50/50. I'm happy to share measurements to confirm and, if needed, make a custom template to match your guitar.
